End / Windage Plates

End / Windage Plate

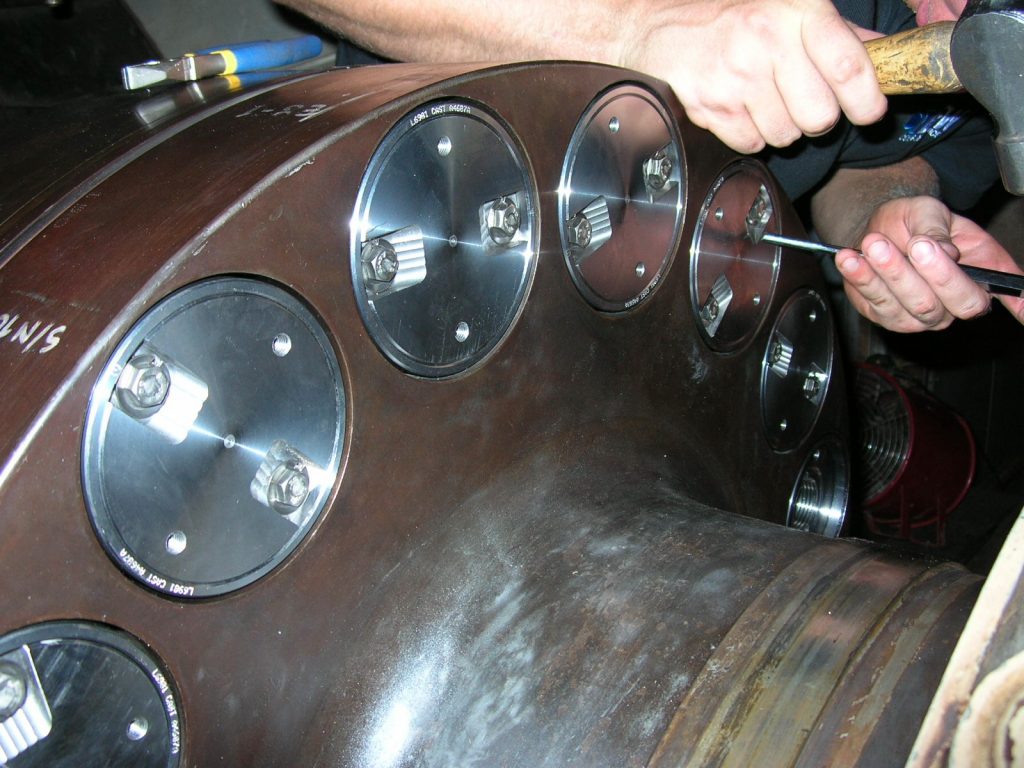

End Plates commonly known as Windage plates are an accessory to Pilgrims RadialFit and ClampBolts and designed to improve the aerodynamics or noise reduction of high speed turbines where the Coupling bolt nut is located within a counter-bore of the Coupling. Pilgrims plate designs can either bolt into the nut or bolt. In addition and if the client requires an anit-rotational feature can be designed into the plates. As our designs are bespoke to the application please contact Pilgrim for further details. Click Here
