HYDROCAM®: Specific Hydraulic bolt Tensioners

HYDROCAM® specific hydraulic bolt tensioners

Pilgrim offers tailor-made design of the various tensioner components, in compliance with your application requirements. The operating principle remains the same, however new functions can be added thanks to Pilgrim expertise:

The general shape, size and number of components can vary as needed, to fit the accessibility, size restrictions and handling constraints.

The choice of the materials and heat treatments is adapted to meet the mechanical and weight specifications of an application. Pilgrim tensioners can also be manufactured in lighter materials such as titanium.

The tensioner environment can require the use of specific hydraulic fluids. HYDROCAM® tensioners can be designed to work with all types of hydraulic connectors.

Turning down operations can be motorized and fully automated. In cases requiring high accuracy, Pilgrim can supply sensor washers or devices to measure bolt elongation.

For improved tightening uniformity over several bolts, we recommend either total (preferably) or partial simultaneous tightening.

  • Stainless steel tensioner: works with water, compact, no pollution of the assembly, environmentally friendly

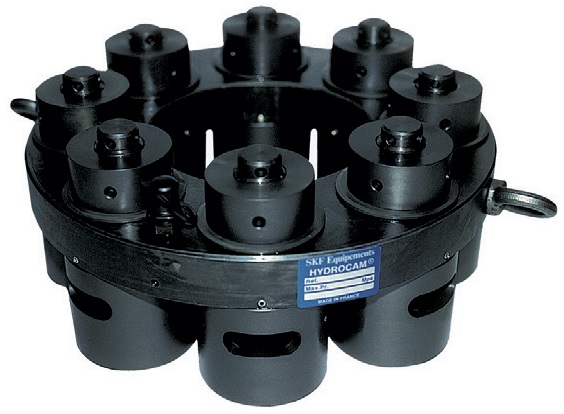

  • Monolithic 8‑tensioner ring: simultaneous, homogeneous tightening, quick, simple use
  • Titanium tensioner: works with water, ultra-light, easy handling, designed to be handled by a diver in an underwater environment
  • Compact tensioner: tightens hard-to-reach bolts, controls turning-down operations
  • Micro tensioner: compact, tightens very small bolts (M5), highly accurate (a few microns of screw elongation)

Let us know your needs – we will meet them!
